微信小程序JSAPI调用原理逆向分析
演示文件
以下文件从微信小程序开发者工具中下载，可能与从微信APK解包出来的略有差异：
以下文件从微信APK解包，并经过格式化：
从微信APK解包的库文件：
微信客户端版本：微信8.0.65
wx.getLocation
JS层：对wx对象的包装
调试控制台中，输入wx.getLocation，发现输出的函数对象只是一个统一包装过的函数。
整体包装的逻辑为：
环境初始化时，wx对象会经过condomWX的包装：
WASubContext.js (9528-9557) / JavaScript
var s = e.__ctx_bridge.condomPrototype(n);
_.onReady((()=>{
if (!0 === _.useHighPerformanceMode)
return a.Z.wx = e.wx,
void (e.doAuditsInjectLogic && e.doAuditsInjectLogic({
globalWx: a.Z.wx
}));
if (s) {
var t;
if (o)
o = i(_.expt, e.wx, o),
a.Z.wx = o;
else
a.Z.wx = y.condomWX(e.wx, e.skipCondom, null === (t = e.__wxConfig) || void 0 === t ? void 0 : t.expt)
} else {
var r;
if (o)
return o = i(_.expt, e.wx, o),
a.Z.wx = o,
void (e.doAuditsInjectLogic && e.doAuditsInjectLogic({
globalWx: a.Z.wx
}));
a.Z.wx = y.condomWX(e.wx, e.skipCondom, null === (r = e.__wxConfig) || void 0 === r ? void 0 : r.expt)
}
e.doAuditsInjectLogic && e.doAuditsInjectLogic({
globalWx: a.Z.wx
}),
e.isPlayableEnv && (a.Z.wx = e.mockPlayableEnv(a.Z))
}
)),
其中，wx对象上的属性会在第一次被访问时被懒包装，也就是调试控制台中看到的函数对象：
WASubContext.js (9193-9236) / JavaScript
fe = (e,t=[],r={})=>{
V(e),
Object.setPrototypeOf(e, Object.prototype);
var o = function() {
var t, r = n[a], o = Object.getOwnPropertyDescriptor(e, a) || {};
Object.defineProperty(e, a, {
get() {
var e, n = Object.prototype.hasOwnProperty.call(o, "value") ? o.value : null === (e = o.get) || void 0 === e ? void 0 : e.call(this);
if (t)
return t;
if (r) {
var a = n;
return 1 & r && (e=>{
R.add(e)
}
)(a),
2 & r && (e=>{
M.add(e)
}
)(a),
t = q(a)
}
if ("function" == typeof n && !t) {
var i = function() {
return this instanceof i ? Reflect.construct(n, arguments, n) : Reflect.apply(n, this, arguments)
};
return Object.defineProperty(i, "name", {
value: n.name
}),
t = i,
i
}
return t = n
},
set(e) {
Object.prototype.hasOwnProperty.call(o, "value") && (o.value = e)
},
enumerable: !0,
configurable: !0
})
};
for (var a of Object.keys(e))
o()
}
这里的懒包装指的是：不在对象创建时立刻把所有属性都包好，而是在属性第一次被访问时，才动态生成包装，并缓存起来。
JS层：getLocation函数的装饰器
getLocation的定义位置是：
WAServiceMainContext.js (155903-155910) / JavaScript
mQe = O()(Yze.prototype, "getLocation", [XOe, eLe, tLe, rLe], {
configurable: !0,
enumerable: !0,
writable: !0,
initializer: function() {
return GV
}
}),
其中[XOe, eLe, tLe, rLe]是四个装饰器，真正的函数体是GV。四个装饰器为：
WAServiceMainContext.js (151837-151840) / JavaScript
XOe = Bwe(),
eLe = zwe("declare"),
tLe = zce(.05),
rLe = Cwe(),
四个装饰器分别对应以下逻辑，在GV被调用前执行：
1.
XOe = Bwe() - 隐私权限前置检查：
WAServiceMainContext.js (147315-147331) / JavaScript
function Bwe() {
return jt("privacy", {
hookHandlers: {
paramHandler(...e) {
this.params = e
},
asyncPrepositive() {
return (0,
Eb.B)() || zf([this.api], !0) ? Promise.resolve([!1]) : (0,
_f._)(this.api).then((({success: e, errMsg: t, errno: r})=>e ? [!1] : [!0, t, r])).catch((e=>[!1]))
}
},
getState: ()=>({
modifyArgs: !0
})
})
}
2.
eLe = zwe("declare") - 检查requiredPrivateInfos（参考地理位置接口新增与相关流程调整）
WAServiceMainContext.js (147422-147443) / JavaScript
function zwe(e) {
return jt("privateApi", {
hookHandlers: {
beforeExecute() {
if ("declare" === e) {
var t, r, a, n, i = +(null === (t = $.default.appContactInfo) || void 0 === t || null === (r = t.operationInfo) || void 0 === r || null === (a = r.jsonInfo) || void 0 === a || null === (n = a.privacy) || void 0 === n ? void 0 : n.locationPrivateInfosCheckStatus), o = $.default.requiredPrivateInfos, s = o && o.indexOf(this.api) >= 0, l = !("release" !== $.default.envVersion || 1 !== i || o && s), c = "release" !== $.default.envVersion && o && !s;
return !l && !c || [Ct, "the api need to be declared in the requiredPrivateInfos field in app.json/ext.json", ()=>console.error(`wx.${this.api} need to be declared in the requiredPrivateInfos field in app.json/ext.json`)]
}
if ("permission" === e) {
var u = this.api
, d = qwe[u].permissionByte;
if ((0,
Q.J7)(d))
return [Ct, "no permission"]
}
}
},
getState: ()=>({
api: void 0
})
})
}
3.
tLe = zce(.05) - 数据上报：
WAServiceMainContext.js (137568-137685) / JavaScript
function zce(e, t=!1, r=0, a=!1) {
return jt("report", {
hookHandlers: {...},
getState: ()=>({
api: void 0,
prefix: void 0,
uuid: void 0,
params: void 0,
invokeTime: void 0,
report: void 0,
shouldBelieveAsync: void 0,
hasCheckReq: void 0,
subContext: r,
deep: 2
})
})
}
4.
rLe = Cwe() - Promise化：
WAServiceMainContext.js (147061-147122) / JavaScript
function Cwe() {
return jt("promised", {
hookHandlers: {
paramHandler(...e) {
var t = e[0] || {}
, {success: r, fail: a, complete: n} = t;
if (!(r || a || n)) {
this.promise = new Promise(((e,t)=>{
this.resolve = e,
this.reject = t
}
));
var i = this.promise.then.bind(this.promise)
, o = this.promise.catch.bind(this.promise)
, s = !1
, l = !1;
o((e=>{
s && !l && k.thirdErrorReport({
error: e
})
}
)),
this.promise.then = (...e)=>("function" == typeof e[0] && (s = !0),
"function" == typeof e[1] && (l = !0),
i(...e)),
this.promise.catch = e=>(l = !0,
o(e)),
kwe.promise = this.promise
}
},
resultHandler(e) {
var t, r;
if (null !== (t = this.otherDecoratorStates.checkTapPermission) && void 0 !== t && t.refuseExec)
return Pt;
if (null !== (r = this.otherDecoratorStates.apiCache) && void 0 !== r && r.cacheInfo.cache) {
if (this.promise)
return (0,
Y.tI)(this.otherDecoratorStates.apiCache.cacheInfo.ret) ? this.otherDecoratorStates.apiCache.cacheInfo.ret : (this.resolve(this.otherDecoratorStates.apiCache.cacheInfo.ret),
this.promise)
} else if (this.promise) {
var a;
return null !== (a = this.otherDecoratorStates) && void 0 !== a && a.apiCache && (this.otherDecoratorStates.apiCache.cacheInfo.rawResult = e),
this.promise
}
return Pt
},
success(e) {
var t, r, a = null === (t = this.otherDecoratorStates) || void 0 === t || null === (r = t.apiCache) || void 0 === r ? void 0 : r.cacheInfo.ret;
this.resolve && this.resolve(a || e)
},
fail(e) {
this.reject && this.reject(e)
}
},
getState: ()=>({
promise: void 0,
resolve: void 0,
reject: void 0
}),
otherDecoratorStates: ["checkTapPermission", "apiCache"]
})
}
JS层：getLocation函数体
接下来就进入真正的函数体GV：
WAServiceMainContext.js (116202-116244) / JavaScript
GV = function(e={}) {
"gcj02" !== e.type && (e.type = "wgs84");
var t = _b(e.type);
if (t)
setTimeout((()=>(0,
q.F0)(bb(t, e), $V, e, {})), 100);
else {
var r = Date.now()
, a = VV[e.type]
, n = WV[e.type];
if (UV && r - qV < jV)
zV.push(e);
else {
if (r - n >= jV || !a) {
var i = (0,
xS.hI)(this);
return UV = !0,
qV = Date.now(),
void FV(e, {
afterSuccess(t) {
WV[e.type] = r,
VV[e.type] = t
},
afterAll() {
UV = !1;
var e = zV;
zV = [],
e.forEach((e=>GV(e)))
}
}, i)
}
var o = a.errMsg && 0 === a.errMsg.indexOf("getLocation:ok");
(0,
q.FE)({
name: "getLocation",
success: o,
args: e,
errMsg: a.errMsg,
res: a
})
}
}
}

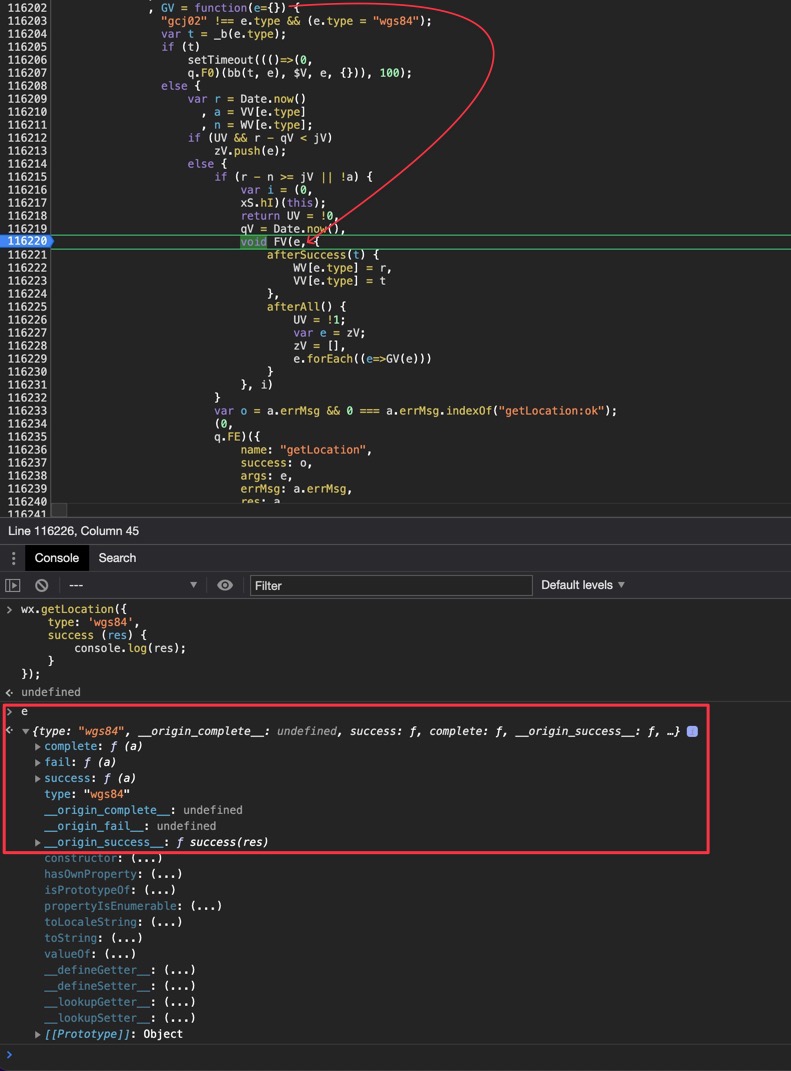

其中e是经过包装的（传入wx.getLocation的）参数，最终被传入FV函数中，FV函数定义如下：
WAServiceMainContext.js (116178-116189) / JavaScript
FV = (e={},t={},r)=>{
var a = (0,
q.qu)(r);
zf(["scope.userLocation"]) && (a = (0,
q.aT)(r),
e.permissionBytes = [1, 1, 1]),
a($V, e, Object.assign({
beforeSuccess(t) {
e.altitude || delete t.altitude
}
}, t))
}

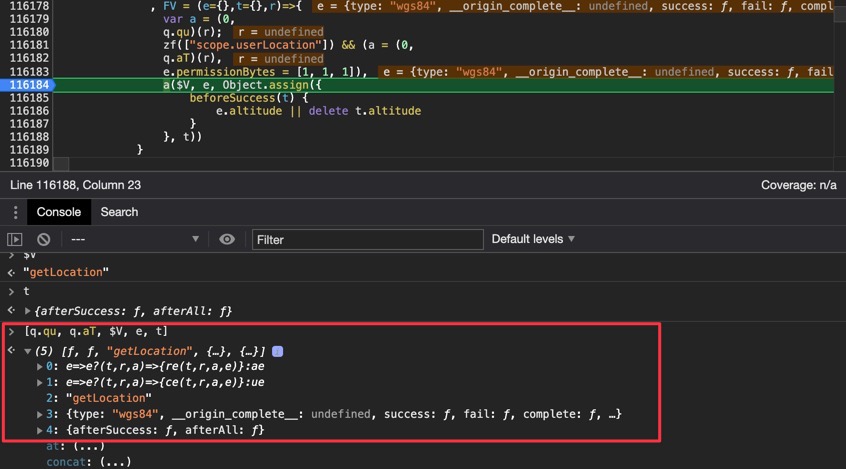

在FV函数中，布尔检查zf(["scope.userLocation"])的结果将决定函数a的定义（q.qu(r)或q.aT(r)），以及参数e中是否添加permissionBytes字段。结果为true时调用wx.getLocation会跳过权限检查。
传入函数a的三个参数($V, e, t)分别是：API名称（字符串）$V、参数对象e、回调函数对象t。
对比zf(["scope.userLocation"])的结果不同时，函数a的定义分别为q.qu(r)、q.aT(r)：
JavaScript
q.qu = e=>e?(t,r,a)=>{re(t,r,a,e)}:ae;
q.aT = e=>e?(t,r,a)=>{ce(t,r,a,e)}:ue;
ue中调用了ce函数，ae中调用了re函数，因此最终的差异要对比ce和re函数：
WAServiceMainContext.js (81590-81640) / JavaScript
var te, re = ee(!1), ae = (e,t,r)=>{
W(e) ? (0,
b.LY)(e, t, r) : re(e, t, r)
}
, ...
, ce = ee(!0), ue = (e,t,r)=>{
ce(e, t, r)
}
, de = e=>e ? (t,r,a)=>{
ce(t, r, a, e)
}
: ue

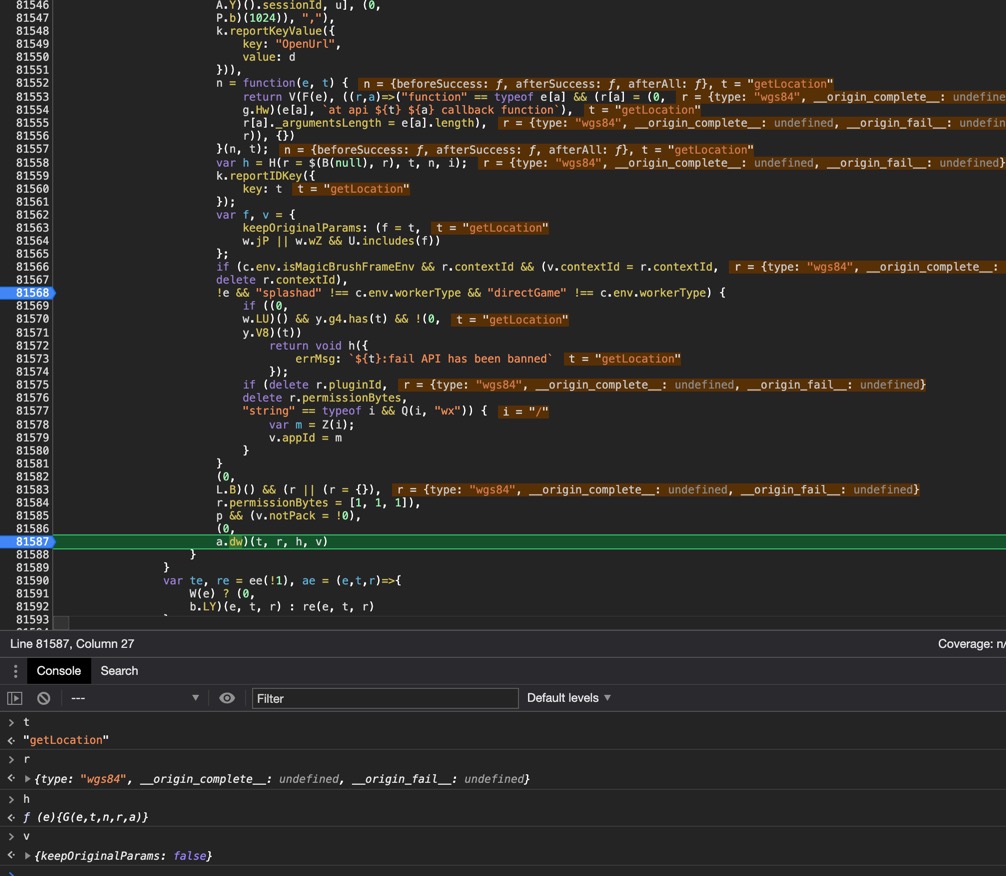

可以看到就是ee(false)和ee(true)的差异。接下来分析ee函数（下面展示的代码经过了二次格式化）：
WAServiceMainContext.js (81526-81589) / JavaScript
function ee(e) {
return function (t, r = {}, n = {}, i = "/") {
var o, s, l, u, d, p = n.notPack;
((0, _.Kn)(r) || (r = {}),
"operateWXData" === t &&
(r._isFromBaseOperateWXData, delete r._isFromBaseOperateWXData),
("openUrl" !== t && "private_openUrl" !== t) ||
((o = t),
(s = r),
(l = Date.now()),
(u = s.url || ""),
(d = N(
D(
[
C.default.appType + 1e3,
o,
x(),
(0, A.Y)().scene,
(0, E.L)((0, A.Y)().scene_note || (0, A.Y)().sceneNote),
(0, P.c)(s),
l,
0,
(0, T.k)(),
(0, T.n)(),
(0, A.Y)().sessionid || (0, A.Y)().sessionId,
u,
],
(0, P.b)(1024),
),
",",
)),
k.reportKeyValue({
key: "OpenUrl",
value: d,
})),
(n = (function (e, t) {
return V(
F(e),
(r, a) => (
"function" == typeof e[a] &&
((r[a] = (0, g.Hw)(e[a], `at api ${t} ${a} callback function`)),
(r[a]._argumentsLength = e[a].length)),
r
),
{},
);
})(n, t)));
var h = H((r = $(B(null), r)), t, n, i);
k.reportIDKey({
key: t,
});
var f,
v = {
keepOriginalParams: ((f = t), w.jP || (w.wZ && U.includes(f))),
};
if (
(c.env.isMagicBrushFrameEnv &&
r.contextId &&
((v.contextId = r.contextId), delete r.contextId),
!e &&
"splashad" !== c.env.workerType &&
"directGame" !== c.env.workerType)
) {
if ((0, w.LU)() && y.g4.has(t) && !(0, y.V8)(t))
return void h({
errMsg: `${t}:fail API has been banned`,
});
if (
(delete r.pluginId,
delete r.permissionBytes,
"string" == typeof i && Q(i, "wx"))
) {
var m = Z(i);
v.appId = m;
}
}
((0, L.B)() && (r || (r = {}), (r.permissionBytes = [1, 1, 1])),
p && (v.notPack = !0),
(0, a.dw)(t, r, h, v));
};
}
高亮部分是ee(false)时会执行的额外逻辑。最终进入的函数是(0, a.dw)(t, r, h, v)。

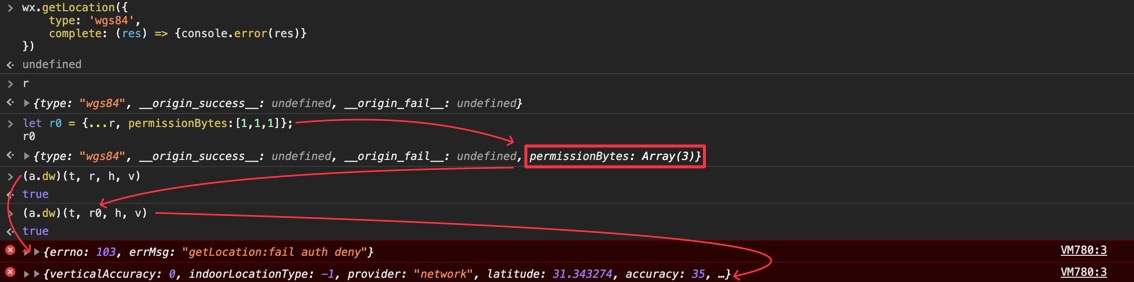

注意ee(false)时额外执行的delete r.permissionBytes。假如在a.dw调用前手动给参数r加入permissionBytes属性，即可在用户不授权位置信息的条件下，也能获得定位数据。
a.dw函数的定义可以追到：
WAServiceMainContext.js (81236-81256) / JavaScript
function u(e, t, r, i={}) {
var u = r;
r = r=>{
(0,
s.yZ)(e, t) && (0 === (r.errMsg || `${e}:ok`).indexOf(`${e}:ok`) && l.emit("success", e));
"function" == typeof u && u(r)
}
,
"navigateToMiniProgram" !== e && "openUrl" !== e && "private_openUrl" !== e || (t.adUxInfo = t.adUxInfo || (0,
o.I)(),
t.commonUxInfo = t.commonUxInfo || (0,
o.l)());
var d = i.appId;
return "splashad" === c.env.workerType || "directGame" === c.env.workerType || a.default.supportInvokeWithAppId || void 0 === d || 4 === a.default.appType || 19 === a.default.appType ? v.invoke(e, t, r, i) : (0,
n.Gw)((()=>{
var a = (0,
n.Dl)(e, d, t);
v.invoke(e, a, r, i)
}
))
}

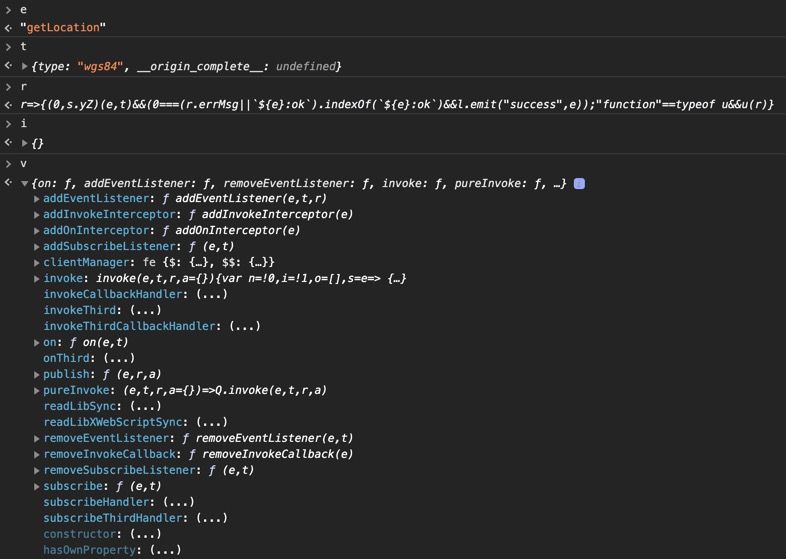

注意到v.invoke(e, t, r, i)的逻辑，这里的v.invoke就是WeixinJSBridge.invoke。
JS层：invokeHandler
找到WeixinJSBridge.invoke的定义：
WAServiceMainContext.js (22107-22142) / JavaScript
invoke(e, t, r, a={}) {
var n = !0
, i = !1
, o = []
, s = e=>{
for (var t of (i || (n = !1),
o))
t(e, n);
null == r || r(e)
}
;
if (Q) {
var l = e=>{
o.push(e)
}
;
for (var c of ae) {
var u = c(e, t, l);
if (u)
return u instanceof Promise ? (u.then((e=>{
s(e)
}
)),
!0) : (s(u),
!1)
}
Q.invoke(e, t, s, a)
} else
console.error(`[jsbridge] invoke ${e} fail: jsbridge not ready.`, new Error("jsbridge not ready").stack),
s({
errMsg: `${e}:fail jsbridge not ready`,
errno: 4
});
return i = !0,
n
},
这个invoke函数仍然是一层封装，可以看出核心逻辑还是进入Q.invoke(e, t, s, a)，再追Q.invoke的定义：
WAServiceMainContext.js (21956-21971) / JavaScript
invoke(e, r, a, n={}) {
var i, s, c, u = r;
S || n.keepOriginalParams || t.directInvokeJS || (n.notPack ? delete n.notPack : r = m.pack(r),
("ios" !== l.platform || z || "1" !== (null === (s = l) || void 0 === s || null === (c = s.expt) || void 0 === c ? void 0 : c.clicfg_appbrand_ios_use_jsapi_args_binding)) && (u = V(r || {})));
if (delete n.keepOriginalParams,
null !== (i = r) && void 0 !== i && i.noCallback && F())
return w(e, u, 0, n),
0;
var d = o.add(a);
return $() || C.set(d, e),
n.highPerformance && (n.highPerformance[d] = r,
delete n.highPerformance),
"function" == typeof n.notifyId && n.notifyId(d),
w(e, u, d, n),
d
},

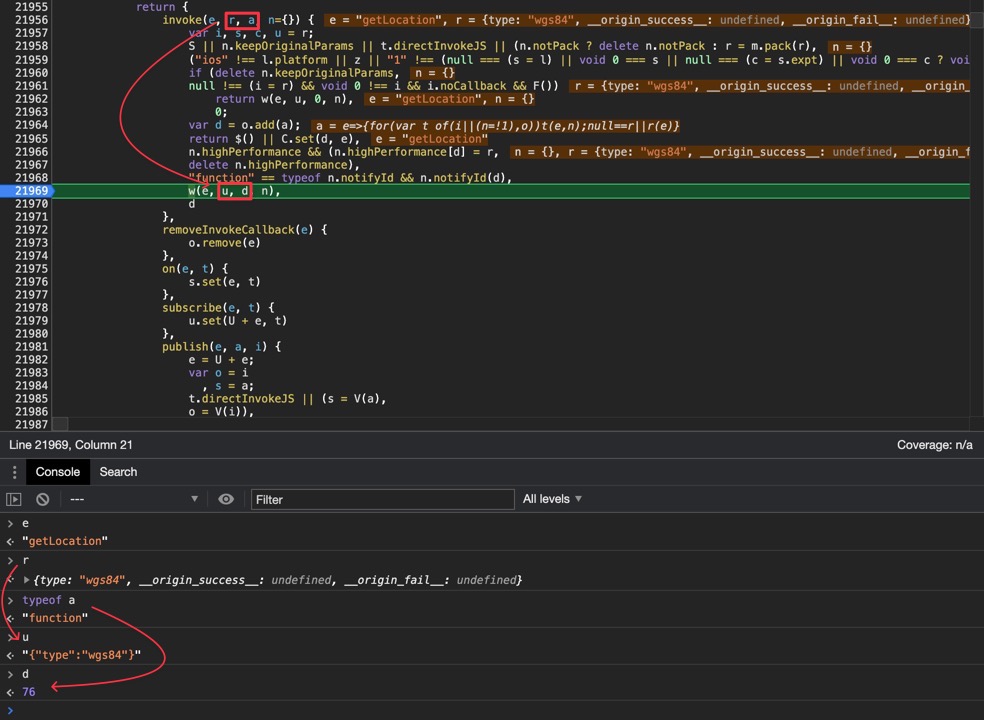

注意在这个函数中，入参(e, r, a, n)中e是API名称（字符串）"getLocation"，r是参数对象，在经过u = V(r || )后（V实际是JSON.stringify）以JSON字符串的形式被传入函数w。
同样的，回调a经过var d = o.add(a);后（这里的o是一个自定义的回调管理器对象），以整数类型的IDd被传入函数w。

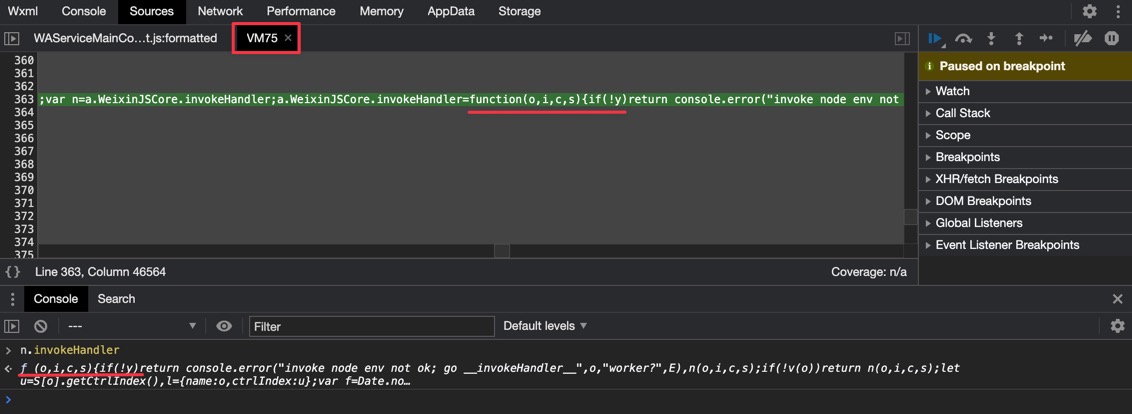

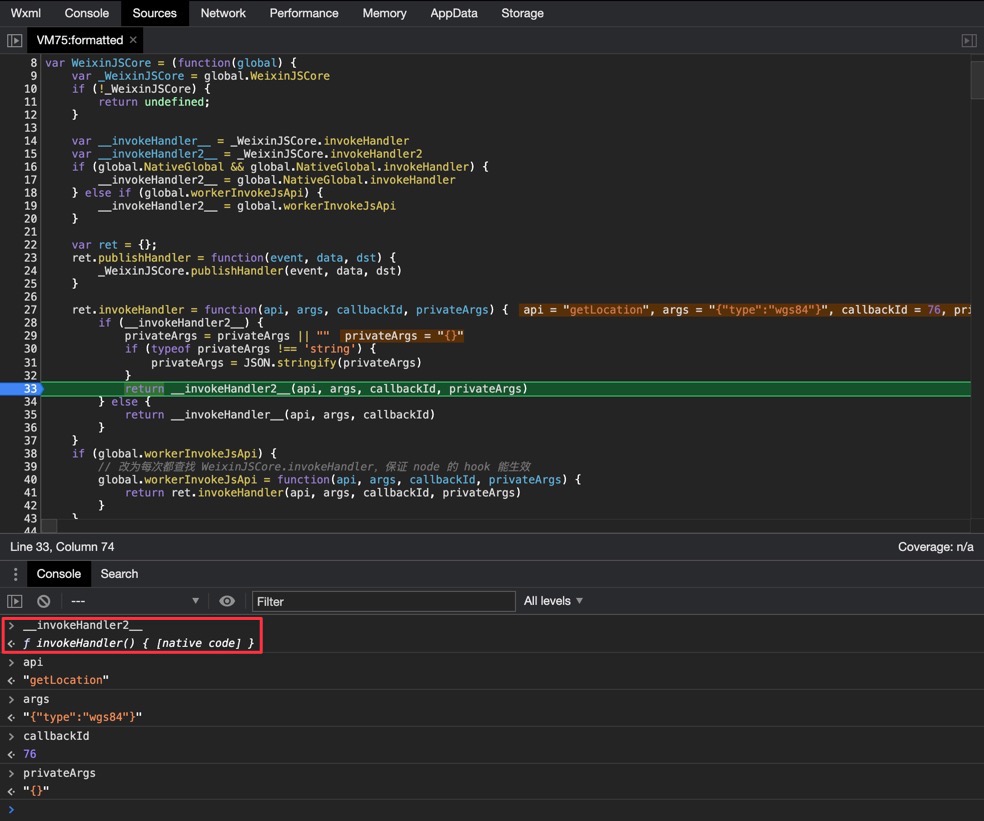

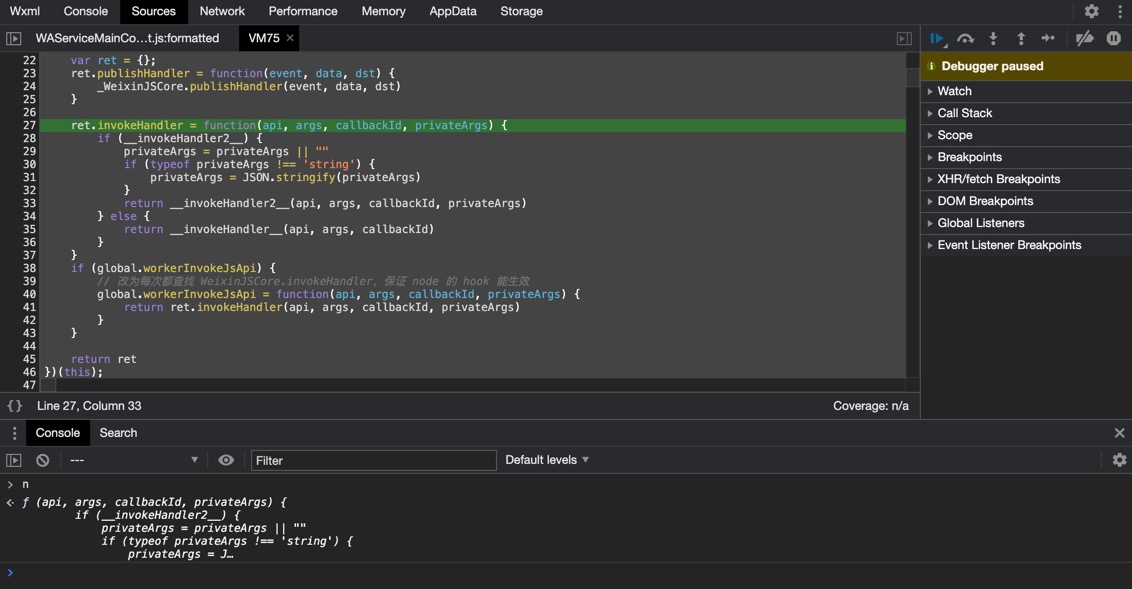

再追函数w的定义：
WAServiceMainContext.js (21921-21953) / JavaScript
function w(e, a, i, o={}) {
if (n) {
var s, u, p;
if ("splashad" === c.env.workerType || "directGame" === c.env.workerType || l.supportInvokeWithAppId)
s = null === (u = n.invokeHandler) || void 0 === u ? void 0 : u.call(n, e, a, i, o);
else
s = null === (p = n.invokeHandler) || void 0 === p ? void 0 : p.call(n, e, a, i);
d(s, i, void 0)
} else {
var h = {
event: e,
paramsString: a,
callbackId: i,
privateArgs: V(o)
};
if (t.isWebMiniGame) {
d(prompt("webgame_invoke", V(h)), i, void 0)
} else {
var f = null == r ? void 0 : r.messageHandlers.invokeHandler.postMessage(h);
null != f && f.catch && f.catch((t=>{
var r = console.error.bind(console);
r("webkit.messageHandlers.invokeHandler.postMessage fail"),
r(`event=${e}`),
r("params=", a),
r("err=", t),
r("err.code=", t.code),
r("err.message=", t.message),
r("err.name=", t.name)
}
))
}
}
}
可以看到参数传入了n.invokeHandler。
点击跳转函数位置，在开发者工具中已经没有本地文件与之对应，显示为VM75，表示这段代码可能在环境中被动态注入。不过与从微信APK解包出的基础库代码比对，能看到这段逻辑定义在node_jsapi.js文件中：
node_jsapi.js (2600-2646) / JavaScript
var n = a.WeixinJSCore.invokeHandler;
((a.WeixinJSCore.invokeHandler = function (o, i, c, s) {
if (!y)
return (
console.error(
"invoke node env not ok; go __invokeHandler__",
o,
"worker?",
E,
),
n(o, i, c, s)
);
if (!v(o)) return n(o, i, c, s);
let u = S[o].getCtrlIndex(),
l = { name: o, ctrlIndex: u };
var f = Date.now();
let d = new r(e, a.WeixinJSCoreAndroid, c, l, m, t);
d.markStartTime(f);
var h = function () {
try {
var e = i;
if ("object" != typeof i && ((e = JSON.parse(i)), !p(d, e)))
return;
return ((e._invoke_time_ = f), S[o].invoke(d, e));
} catch (e) {
return (
e.no_log ||
console.error(
e + "; go __invokeHandler__",
o,
"worker?",
E,
),
n(o, i, c, s)
);
}
};
try {
return E && void 0 === m ? h() : t.check(d, l, h) ? h() : "";
} catch (e) {
return (
e.no_log || console.error(e + "; go __invokeHandler__"),
n(o, i, c, s)
);
}
}),
delete a.javaBroker);
再追n，同样可以比对出函数逻辑定义在微信APK解包出的android.js文件中：
android.js (27-37) / JavaScript
var WeixinJSCore = (function(global) {
var _WeixinJSCore = global.WeixinJSCore
if (!_WeixinJSCore) {
return undefined;
}
var __invokeHandler__ = _WeixinJSCore.invokeHandler
var __invokeHandler2__ = _WeixinJSCore.invokeHandler2
if (global.NativeGlobal && global.NativeGlobal.invokeHandler) {
__invokeHandler2__ = global.NativeGlobal.invokeHandler
} else if (global.workerInvokeJsApi) {
__invokeHandler2__ = global.workerInvokeJsApi
}
var ret = {};
ret.publishHandler = function(event, data, dst) {
_WeixinJSCore.publishHandler(event, data, dst)
}
ret.invokeHandler = function(api, args, callbackId, privateArgs) {
if (__invokeHandler2__) {
privateArgs = privateArgs || ""
if (typeof privateArgs !== 'string') {
privateArgs = JSON.stringify(privateArgs)
}
return __invokeHandler2__(api, args, callbackId, privateArgs)
} else {
return __invokeHandler__(api, args, callbackId)
}
}
if (global.workerInvokeJsApi) {
// 改为每次都查找 WeixinJSCore.invokeHandler，保证 node 的 hook 能生效
global.workerInvokeJsApi = function(api, args, callbackId, privateArgs) {
return ret.invokeHandler(api, args, callbackId, privateArgs)
}
}
return ret
})(this);
这里实际被调用的__invokeHandler2__已经是[native code]，它来自global.NativeGlobal.invokeHandler，相当于调用：
JavaScript
NativeGlobal.invokeHandler("getLocation", '{"type":"wgs84"}', 76, {})这里就是小程序JS逻辑层的调用进入Native层的边界了。
Native层：注入NativeGlobal
微信小程序的逻辑层不跑在WebView中，而是跑在一个独立的V8 Isolate里。V8原生只能和C++交互，因此无法像渲染层那样直接用@JavascriptInterface让JS调用Java，必须由C++做中转。NativeGlobal对象实际上是Native层向V8环境中注入的，相关逻辑在libwxa-runtime-binding.so中。
逻辑层启动后，notifyCreate(appBrandCommonBindingJniParams)和notifyBindTo(isolatePtr, contextPtr, uVLoopPtr)两个函数依次被调用：
com.tencent.mm.appbrand.commonjni.AppBrandCommonBindingJni / Java
package com.tencent.mm.appbrand.commonjni;
// import ...
/* loaded from: classes8.dex */
public class AppBrandCommonBindingJni {
private static final String TAG = "MicroMsg.AppBrandCommonBindingJni";
private a mAppBrandDelegate;
// ...
static {
d.f214192a.loadLibrary("wxa-runtime-binding");
}
private native void nativeBindTo(long j16, long j17, long j18, long j19);
private native long nativeCreate(AppBrandCommonBindingJniParams appBrandCommonBindingJniParams);
// ...
public void notifyBindTo(long j16, long j17, long j18) {
long j19 = this.mNativeHandle;
if (j19 != 0) {
nativeBindTo(j19, j16, j17, j18);
}
}
public void notifyCreate(AppBrandCommonBindingJniParams appBrandCommonBindingJniParams) {
long jNativeCreate = nativeCreate(appBrandCommonBindingJniParams);
this.mNativeHandle = jNativeCreate;
h.a(TAG, "hy: created with %d", Long.valueOf(jNativeCreate));
}
// ...
}
其中主要绑定逻辑在nativeBindTo函数中完成。其对应的Native代码为：
0x71BB4 / C++
void __fastcall Java_com_tencent_mm_appbrand_commonjni_AppBrandCommonBindingJni_nativeBindTo(
int a1, // <-- JNIEnv* env,
int a2, // <-- jobject thiz,
__int64 a3, // <-- jlong nativeHandle,
v8::Isolate * a4, // <-- jlong isolatePtr,
_QWORD ** a5, // <-- jlong contextPtr,
const void * a6 // <-- jlong uvLoopPtr,
) {
_QWORD * v10; // x0
_QWORD * v11; // x23
_QWORD * Handle; // x0
__int64 v13; // x1
_BYTE v14[24]; // [xsp+10h] [xbp-30h] BYREF
_BYTE v15[16]; // [xsp+28h] [xbp-18h] BYREF
__int64 v16; // [xsp+38h] [xbp-8h]
v16 = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
v8::Locker::Initialize((v8::Locker * ) v15, a4);
v8::Isolate::Enter(a4);
v8::HandleScope::HandleScope((v8::HandleScope * ) v14, a4);
v10 = (_QWORD * ) operator new(0x10 u);
v11 = v10;
if ( * a5) {
Handle = (_QWORD * ) v8::HandleScope::CreateHandle(a4, ** a5);
* v11 = a4;
v11[1] = 0;
if (Handle)
v11[1] = v8::api_internal::GlobalizeReference(a4, * Handle); // <-- v11 = [isolatePtr, globalRef]
} else {
* v10 = a4;
v10[1] = 0;
}
sub_6EBF8(a3, v11, a6); // <-- BindTo(nativeHandle, v11, uvLoopPtr)
sub_70FA0(
2,
v13,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/runtime/appbrand_runtime_jni.cc",
"Java_com_tencent_mm_appbrand_commonjni_AppBrandCommonBindingJni_nativeBindTo",
84,
"BindTo isolate[%p] context[%p] uv[%p]",
a4,
a5,
a6);
v8::HandleScope::~HandleScope((v8::HandleScope * ) v14);
v8::Isolate::Exit(a4);
v8::Locker::~Locker((v8::Locker * ) v15);
}
核心逻辑进入sub_6EBF8：
0x6EBF8 / C++
void __fastcall sub_6EBF8(__int64 a1, __int64 a2, __int64 a3) {
v8::Isolate * v5; // x19
_QWORD * v6; // x8
_QWORD * v7; // x9
v8::Context * Handle; // x22
v8::Context * CurrentContext; // x0
__int64 v10; // x23
__int64 v11; // x1
__int64(__fastcall * v12)(_QWORD); // x8
__int64 v13; // x0
__int64 v14; // [xsp+8h] [xbp-38h] BYREF
_BYTE v15[24]; // [xsp+10h] [xbp-30h] BYREF
_BYTE v16[16]; // [xsp+28h] [xbp-18h] BYREF
__int64 v17; // [xsp+38h] [xbp-8h]
v17 = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
*(_QWORD * )(a1 + 160) = a2;
*(_QWORD * )(a1 + 168) = a3;
sub_6ED80();
v5 = ** (v8::Isolate ** * )(a1 + 160);
v8::Locker::Initialize((v8::Locker * ) v16, v5);
v8::Isolate::Enter(v5);
v8::HandleScope::HandleScope((v8::HandleScope * ) v15, v5);
v6 = * (_QWORD ** )(a1 + 160);
v7 = (_QWORD * ) v6[1];
if (v7)
Handle = (v8::Context * ) v8::HandleScope::CreateHandle( * v6, * v7);
else
Handle = 0;
v8::Context::Enter(Handle);
CurrentContext = (v8::Context * ) v8::Isolate::GetCurrentContext(v5);
v14 = v8::Context::Global(CurrentContext);
v10 = sub_50730(v5, a1, & v14);
sub_4AF24(v5);
sub_6DA24(
2,
v11,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/runtime/appbrand_runtime.cc",
"BindTo",
228,
"[CommonBindg] Binding Finished. NativeGlobal prepared.");
v12 = * (__int64(__fastcall ** )(_QWORD))(a1 + 448);
if (v12) {
v13 = v12( * (_QWORD * )(a1 + 456));
sub_96494( * (_QWORD * )(a1 + 312), v13);
}
sub_962C8( * (_QWORD * )(a1 + 312), a2, v10);
if ( * (_BYTE * )(a1 + 157))
sub_4B7E0(v5, a1, & v14);
v8::Context::Exit(Handle);
v8::HandleScope::~HandleScope((v8::HandleScope * ) v15);
v8::Isolate::Exit(v5);
v8::Locker::~Locker((v8::Locker * ) v16);
}
sub_50730中就是注入的细节了。sub_4917C是一个函数注册器，用于把一个C++函数以指定名称注册到一个v8::Object（也就是NativeGlobal）上。最后调用v8::Object::Set给全局环境注入NativeGlobal对象。
0x50730 / C++
__int64 __fastcall sub_50730(v8::Object * a1, int * a2, _QWORD * a3) {
v8::Value * v6; // x0
__int64 v7; // x1
v8::Value * v8; // x22
v8::Isolate * v9; // x1
__int64 v10; // x21
__int64 v11; // x20
__int64 CurrentContext; // x22
__int64 v13; // x19
v8::api_internal * v14; // x0
int v16[2]; // [xsp+0h] [xbp-10h] BYREF
__int64 v17; // [xsp+8h] [xbp-8h]
v17 = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
v6 = (v8::Value * ) sub_493C8(a1, * a3, "NativeGlobal");
if (v6 && (v8 = v6, (v8::Value::IsObject(v6) & 1) != 0)) {
sub_4FCB0(
2,
v7,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/bindings/binding_native_global.cc",
"BindTo",
161,
"hy: has NativeGlobal, reuse it");
} else {
sub_4FCB0(
2,
v7,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/bindings/binding_native_global.cc",
"BindTo",
158,
"hy: no NativeGlobal, create new one");
v8 = (v8::Value * ) v8::Object::New(a1, v9);
}
*(_QWORD * ) v16 = v8;
sub_4917C((int)a1, (int)v8, (int)"invokeHandler", (int)sub_4F804, (v8::Isolate *)a2);
sub_4917C((int)a1, (int)v8, (int)"initModule", (int)sub_50030, (v8::Isolate *)a2);
sub_4917C((int)a1, (int)v8, (int)"testV8Crash", (int)sub_4FDC4, (v8::Isolate *)a2);
sub_512E8(a1, a2, v16);
sub_4F014(a1);
if (a2[84] <= 0) {
sub_5561C(a1, a2, v16);
sub_51414(a1, a2, v16);
sub_4917C((int)a1, v16[0], (int)"getCurrentThreadTime", (int)sub_50658, (v8::Isolate *)a2);
sub_4917C((int)a1, v16[0], (int)"createSignal", (int)sub_4FE60, (v8::Isolate *)a2);
}
v10 = * a3;
v11 = * (_QWORD * ) v16;
CurrentContext = v8::Isolate::GetCurrentContext(a1);
v13 = v8::String::NewFromUtf8(a1, "NativeGlobal", 0, 0xFFFFFFFF LL);
if (!v13)
v8::api_internal::ToLocalEmpty(0);
v14 = (v8::api_internal * ) v8::Object::Set(v10, CurrentContext, v13, v11); // <-- 将NativeGlobal设置到全局对象上
if (!(_BYTE) v14)
v8::api_internal::FromJustIsNothing(v14);
return * (_QWORD * ) v16;
}
至此就建立起了JS层通过NativeGlobal.invokeHandler调用C++函数的能力，并且可以看到invokeHandler的C++实现在sub_4F804中。
Native层：发起JNI调用
微信小程序的JSAPI最终还是需要依赖Java层的系统能力（比如定位），因此Native层在这里起到一个中转站的角色，对JS层暴露NativeGlobal对象，又通过JNI把JS层的调用转发给Java层。
Plain Text
[JS层] NativeGlobal.invokeHandler(...)
^
注入NativeGlobal对象
^
[Native层]
v
JNI调用
v
[Java层] com.tencent.mm.appbrand.commonjni.AppBrandCommonBindingJni.nativeInvokeHandler(...)
因此接下来要分析的就是invokeHandler的C++实现（sub_4F804）最终发起了什么JNI调用。sub_4F804是对sub_4F878的简单封装：
0x4F804 / C++
void __fastcall sub_4F804(__int64 a1) {
v8::Isolate * v2; // x20
_QWORD v3[4]; // [xsp+0h] [xbp-20h] BYREF
v3[3] = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
v2 = * (v8::Isolate ** )( * (_QWORD * ) a1 + 8 LL);
v8::HandleScope::HandleScope((v8::HandleScope * ) v3, v2);
sub_4F878(v2, a1);
v8::HandleScope::~HandleScope((v8::HandleScope * ) v3);
}
进入sub_4F878之后的函数很长，这里只贴出最关键的逻辑：
0x4F878 / C++
// binding_native_global.cc invokeHandlerFunc
void __fastcall sub_4F878(v8::Isolate * a1, int * a2) {
// ...
FunctionTemplateData = (v8::External * ) v8::api_internal::GetFunctionTemplateData( *
(_QWORD * )( * (_QWORD * ) a2 + 8 LL),
*(_QWORD * ) a2 + 32 LL);
v5 = v8::External::Value(FunctionTemplateData);
// ...
// sub_6364C(&result, invoker, apiNameBuf, argsBuf, privateArgsBuf, callbackId, ...);
sub_6364C( & v48, v31, v50, & v54, & v52, (unsigned __int64) v29 >> 32, *(unsigned int * )(v5 + 336));
// ...
}
这里的a2实际是v8::FunctionCallbackInfo指针，保存了来自JS层的调用信息。参数被取出后传入sub_6364C：
0x6364C / C++
// appbrand_js_invoker.cc Invoke
void __usercall sub_6364C(
__int64 a1 @ <X0> ,
__int64 a2 @ <X1> ,
unsigned __int8 * a3 @ <X2> ,
unsigned __int8 * a4 @ <X3> ,
unsigned int a5 @ <W4> ,
unsigned int a6 @ <W5> ,
_QWORD * a7 @ <X8> )
{
// ...
sub_62F9C(v9, a2, v22, v128, v26, & v127, & v126, a7, 0, a6, & v117);
}
sub_62F9C：
0x62F9C / C++
// appbrand_js_invoker.cc NativeInvokeHandlerImp
__int64 __fastcall sub_62F9C(
__int64 * a1,
__int64 a2,
__int64 a3,
unsigned int * a4,
__int64 a5,
unsigned int * a6,
unsigned int * a7,
__int64 a8,
char a9,
unsigned int a10,
unsigned int * a11)
{
// ...
v29 = sub_633E0( * (_QWORD * )( * a1 + 216), v23, v27, v28, * a7, a9 & 1, a10, * a11);
// ...
}
sub_633E0：
0x633E0 / C++
__int64 __fastcall sub_633E0(
__int64 a1,
__int64 a2,
__int64 a3,
__int64 a4,
unsigned int a5,
unsigned __int8 a6,
int a7,
int a8)
{
__int64 v16; // x8
__int64 v17; // x0
__int64 v18; // x20
_QWORD * v19; // x8
__int64 v20; // x1
_QWORD v22[2]; // [xsp+10h] [xbp-10h] BYREF
v22[1] = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
if ( * (_BYTE * )(a1 + 48))
v16 = * (_QWORD * )(a1 + 40);
else
v16 = * (_QWORD * )(a1 + 24);
v17 = * (_QWORD * )(v16 + 8);
v22[0] = 0;
( * (void(__fastcall ** )(__int64, _QWORD * , __int64))( * (_QWORD * ) v17 + 48 LL))(v17, v22, 65542);
v18 = sub_4DA60(v22[0], *(_QWORD * )(a1 + 16), *(_QWORD * )(a1 + 80), a2, a3, a4, a5, a6, a7, a8);
if (! * (_BYTE * )(a1 + 88)) {
if ( * (_BYTE * )(a1 + 48))
v19 = (_QWORD * )(a1 + 40);
else
v19 = (_QWORD * )(a1 + 24);
if ((sub_8135C( * v19) & 1) != 0) {
sub_63538(
4,
v20,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/runtime/j_appbrand_runtime.h",
"__simple_nativeInvokeHandler",
36,
"[MBRELEASE_ASSERT] failed. [%s] __simple_CallObjectMethod failed. [nativeInvokeHandler]",
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())");
__android_log_assert(
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())",
"AppBrandCommon",
"__simple_CallObjectMethod failed. [nativeInvokeHandler]");
}
}
return v18;
}
sub_4DA60是一个通用的JNI调用包装器：
0x4DA60 / C++
__int64 sub_4DA60(__int64 a1, __int64 a2, __int64 a3, ...) {
__int64(__fastcall * v3)(__int64, __int64, __int64, __va_list_tag * ); // x8
gcc_va_list va1; // [xsp+B0h] [xbp-50h] BYREF
gcc_va_list va; // [xsp+D8h] [xbp-28h] BYREF
__int64 v7; // [xsp+F8h] [xbp-8h]
va_start(va, a3);
v7 = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
v3 = * (__int64(__fastcall ** )(__int64, __int64, __int64, __va_list_tag * ))( * (_QWORD * ) a1 + 280 LL);
va_copy(va1, va);
return v3(a1, a2, a3, va1);
}
这里的v3有一个查JNI函数表（a1的类型是JNIEnv）的操作a1 + 280。可以借助这个代码打印出函数地址（找到偏移280 = 0x118对应的函数），或者查Oracle的JNI函数表（表中索引就是280 / 8 = 35），可以得知v3函数是CallObjectMethodV。这个函数的签名是：
C++
NativeType CallObjectMethodV(JNIEnv *env, jobject obj, jmethodID methodID, va_list args);可以看出传给sub_4DA60的第三个参数a3是methodID，后续的可变参数被打包进va1。回头看sub_633E0调用sub_4DA60时传入的第三个参数是*(a1 + 80)。而这个methodID是在函数sub_6F4E0（onJNIMethodRegistry）中被创建的：
0x6F4E0 / C++
__int64 __fastcall sub_6F4E0(__int64 a1) {
__int64 v2; // x8
__int64 v3; // x0
// ...
v62[1] = * (_QWORD * )(_ReadStatusReg(TPIDR_EL0) + 40);
if ( * (_BYTE * )(a1 + 48))
v2 = * (_QWORD * )(a1 + 40);
else
v2 = * (_QWORD * )(a1 + 24);
v3 = * (_QWORD * )(v2 + 8);
v62[0] = 0;
( * (void(__fastcall ** )(__int64, _QWORD * , __int64))( * (_QWORD * ) v3 + 48 LL))(v3, v62, 65542);
v4 = v62[0];
v5 = ( * (__int64(__fastcall ** )(_QWORD, _QWORD, const char * , const char * ))( * (_QWORD * ) v62[0] + 264 LL))(
v62[0],
*(_QWORD * )(a1 + 8),
"nativeInvokeHandler",
"(Ljava/lang/String;Ljava/lang/String;Ljava/lang/String;IZII)Ljava/lang/String;");
v6 = * (unsigned __int8 * )(a1 + 48);
*(_QWORD * )(a1 + 80) = v5;
if (v6)
v7 = (_QWORD * )(a1 + 40);
else
v7 = (_QWORD * )(a1 + 24);
if ((sub_8135C( * v7) & 1) != 0) {
sub_6DA24(
4,
v8,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/runtime/j_appbrand_runtime.h",
"onJNIMethodRegistry",
36,
"[MBRELEASE_ASSERT] failed. [%s] GetMethodID failed. [nativeInvokeHandler]",
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())");
__android_log_assert(
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())",
"AppBrandCommon",
"GetMethodID failed. [nativeInvokeHandler]");
}
v9 = ( * (__int64(__fastcall ** )(__int64, _QWORD, const char * , const char * ))( * (_QWORD * ) v4 + 264 LL))(
v4,
*(_QWORD * )(a1 + 8),
"getAsyncableJsApis",
"()[Ljava/lang/String;");
v10 = * (unsigned __int8 * )(a1 + 48);
*(_QWORD * )(a1 + 96) = v9;
if (v10)
v11 = (_QWORD * )(a1 + 40);
else
v11 = (_QWORD * )(a1 + 24);
if ((sub_8135C( * v11) & 1) != 0) {
sub_6DA24(
4,
v12,
"/data/landun/workspace/lib-wxa-common-binding/src/main/jni/runtime/j_appbrand_runtime.h",
"onJNIMethodRegistry",
36,
"[MBRELEASE_ASSERT] failed. [%s] GetMethodID failed. [getAsyncableJsApis]",
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())");
__android_log_assert(
"(!(usePrivate ? mPrivateJNI : mJNI.get())->dumpStackIfJavaException())",
"AppBrandCommon",
"GetMethodID failed. [getAsyncableJsApis]");
}
// ...
}
v5是JNI函数表中偏移为264的函数，可以查到正是GetMethodID方法，签名为：
C++
jmethodID GetMethodID(JNIEnv *env, jclass clazz, const char *name, const char *sig);它的作用是根据方法签名查找对应的Java函数。可以看到*(a1 + 80)处保存的methodID正是Java层的AppBrandCommonBindingJni.nativeInvokeHandler函数：
com.tencent.mm.appbrand.commonjni.AppBrandCommonBindingJni / Java
package com.tencent.mm.appbrand.commonjni;
// import ...
/* loaded from: classes8.dex */
public class AppBrandCommonBindingJni {
private static final String TAG = "MicroMsg.AppBrandCommonBindingJni";
private a mAppBrandDelegate;
// ...
public String nativeInvokeHandler(String str, String str2, String str3, int i16, boolean z16, int i17, int i18) {
return this.mAppBrandDelegate.u(str, str2, str3, i16, z16, i17, i18);
}
// ...
}
通过以上分析，我们知道JS层调用NativeGlobal.invokeHandler后，借助Native层的中转，Java层将进入AppBrandCommonBindingJni.nativeInvokeHandler函数的逻辑。
Java层：JSAPI调用派发
这一部分主要来分析Java层nativeInvokeHandler这个统一接口是怎么把不同的JSAPI调用派发给对应的处理逻辑的。首先，mAppBrandDelegate的类型是dk.a接口，通过查找引用可以找到抽象类com.tencent.luggage.sdk.jsapi.component.service.b：
com.tencent.luggage.sdk.jsapi.component.service.b / Java
package com.tencent.luggage.sdk.jsapi.component.service;
// import ...
/* loaded from: classes8.dex */
public abstract class b implements dk.a {
/* renamed from: d, reason: collision with root package name */
public final WeakReference f30589d;
// ...
@Override // dk.a
public String u(String str, String str2, String str3, int i16, boolean z16, int i17, int i18) {
com.tencent.mm.plugin.appbrand.jsruntime.t tVarB;
if (this.f30589d.get() != null && !this.f30590e.get()) {
if (i17 > 0) {
try {
tVarB = b(i17);
} catch (Throwable th6) {
m2.n("MicroMsg.AbsAppBrandDelegate", th6, "nativeInvokeHandler", new Object[0]);
com.tencent.mm.sdk.platformtools.x3.h(new a(this, th6));
return "";
}
} else {
tVarB = null;
}
return ((com.tencent.mm.plugin.appbrand.jsapi.m) this.f30589d.get()).Q(str, str2, str3, i16, z16, tVarB, i18);
}
m2.e("MicroMsg.AbsAppBrandDelegate", "hy: component released when nativeInvokeHandler: %s, %s, %d, %b", str, str2, Integer.valueOf(i16), Boolean.valueOf(z16));
String str4 = this.f30591f;
if (!TextUtils.isEmpty(str4)) {
try {
return new JSONObject().put("errMsg", str + ":" + str4).toString();
} catch (Exception unused) {
}
}
return null;
}
// ...
}
mAppBrandDelegate.u最终进入的是com.tencent.mm.plugin.appbrand.jsapi.m.Q函数。这个函数的反编译有点问题，看Simple代码：
com.tencent.mm.plugin.appbrand.jsapi.m#Q / Java
public String Q(String r16, String r17, String r18, int r19, boolean r202, com.tencent.mm.plugin.appbrand.jsruntime.c0 r212, int r222) {
/*
String r16: apiName
String r17: args
String r18: privateArgs
int r19: callbackId
boolean r202: isAsync
...
*/
String r112 = "";
j0 r56 = t(r16);
if (r56 != null) goto L300;
a(r19, S(r16, "fail:not supported"));
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invokeHandler, api: %s not support", new Object[]{r16});
return "fail:not supported";
L300:
System.currentTimeMillis();
boolean r110 = r56 instanceof f;
C();
if (r212 != null) goto L303;
com.tencent.mm.plugin.appbrand.jsruntime.c0 r96 = getF141738e();
L305:
if (r110 == false) goto L373;
if (r212 == null) goto L316;
SparseArray r111 = this.f78928r;
monitor-enter(r111);
this.f78928r.put(r19, r212); // Catch: Throwable -> L312
monitor-exit(r111); // Catch: Throwable -> L312
L312:
th = move-exception;
throw th;
L316:
if (((f) r56).z() == false) goto L321;
if (r202 == false) goto L320;
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "hy: should be called in js thread but called in async thread", null);
return "";
L320:
O(r56, r17, r18, r19, r96, null);
r112 = "";
L377:
C();
System.currentTimeMillis();
return r112;
L321:
if (r202 == false) goto L361;
boolean r66 = true;
if (this.f78930t == false) goto L387;
L354:
if (r66 == false) goto L361;
this.f78926p.b(r16, r222);
O(r56, r17, r18, r19, r96, L().getLooper());
goto L377
L387:
Field r06 = (Field) bp5.b.a(Looper.class.getField("sThreadLocal")); // Catch: NoSuchFieldException -> L328 Throwable -> L338 Exception -> L340
L332:
r06.getType(); // Catch: Throwable -> L338 Exception -> L340
ThreadLocal r07 = (ThreadLocal) r06.get(Looper.class); // Catch: Throwable -> L338
if (r07.get() != null) goto L336;
r07.set(L().getLooper()); // Catch: Throwable -> L338
L336:
this.f78930t = true; // Catch: Throwable -> L338
com.tencent.mm.sdk.platformtools.m2.j("MicroMsg.AppBrandComponentImpl", "[+] hookLooper succeed", null);
L340:
e = move-exception;
throw new bp5.c(e); // Catch: Throwable -> L338
L328:
e = move-exception;
Class r132 = Looper.class;
L381:
r06 = (Field) bp5.b.a(r132.getDeclaredField("sThreadLocal")); // Catch: Throwable -> L338 Exception -> L340 NoSuchFieldException -> L342
L342:
r132 = r132.getSuperclass(); // Catch: Throwable -> L338 Exception -> L340
if (r132 != null) goto L381;
throw new bp5.c(e); // Catch: Throwable -> L338 Exception -> L340
L338:
th = move-exception;
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "hookLooper, t=%s", new Object[]{th}); // Catch: Throwable -> L356
if (this.f78930t == false) goto L353;
com.tencent.mm.sdk.platformtools.m2.j("MicroMsg.AppBrandComponentImpl", "[+] hookLooper succeed", null);
L353:
r66 = false;
L356:
th = move-exception;
if (this.f78930t == false) goto L360;
com.tencent.mm.sdk.platformtools.m2.j("MicroMsg.AppBrandComponentImpl", "[+] hookLooper succeed", null);
L360:
throw th;
L361:
te r113 = this.f78926p;
monitor-enter(r113);
L370:
th = move-exception;
throw th;
L364:
if (r113.f80749b == false) goto L367;
monitor-exit(r113);
L369:
L().post(new o(this, r19, r16, r56, r17, r18, r19, r96));
goto L377
L367:
r113.f80750c.put(r19, System.currentTimeMillis()); // Catch: Throwable -> L370
monitor-exit(r113);
goto L369
L373:
if (r202 == false) goto L376;
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "hy: is sync but called in async thread", null);
return "";
L376:
r112 = O(r56, r17, r18, r19, r96, null);
goto L377
L303:
r96 = r212;
goto L305
}
Q函数根据apiName查找对应的handler（变量r56，类型为com.tencent.mm.plugin.appbrand.jsapi.j0），并根据API的同步/异步属性、当前线程环境以及是否为跨线程调用，采取不同的分发策略。
所有的路径最终都会调用O函数（new o(...).run()最终也会调用O函数），O函数中将创建一个调度器对象com.tencent.mm.plugin.appbrand.jsapi.q，函数q.a调用时会判断当前进程是否为目标进程（looper），如果不是则会创建com.tencent.mm.plugin.appbrand.jsapi.p对象，p.run()中会再次调用函数q.a，此时线程检查通过，JSON字符串参数将被解析，最终传入函数com.tencent.mm.plugin.appbrand.jsapi.m.R。
com.tencent.mm.plugin.appbrand.jsapi.m#O / Java
public final String O(j0 j0Var, String str, String str2, int i16, com.tencent.mm.plugin.appbrand.jsruntime.c0 c0Var, Looper looper) {
if (!c(j0Var.k(), c0Var)) {
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invoke log[%s] api[%s], callbackId[%d], component not running", C(), j0Var.k(), Integer.valueOf(i16));
return S(j0Var.k(), "fail:interrupted");
}
q qVar = new q(this, str, j0Var, str2, i16, c0Var, looper);
k kVar = this.f78921h;
if (!(kVar != null && kVar.c(j0Var, str, str2, i16, qVar))) {
qVar.a();
}
return !TextUtils.isEmpty(qVar.f80734a) ? qVar.f80734a : "";
}
com.tencent.mm.plugin.appbrand.jsapi.q / Java
package com.tencent.mm.plugin.appbrand.jsapi;
// import ...
/* loaded from: classes8.dex */
public class q extends t1 {
// ...
public q(m mVar, String str, j0 j0Var, String str2, int i16, com.tencent.mm.plugin.appbrand.jsruntime.c0 c0Var, Looper looper) {
this.f80133h = mVar;
this.f80127b = str;
this.f80128c = j0Var;
this.f80129d = str2;
this.f80130e = i16;
this.f80131f = c0Var;
this.f80132g = looper;
}
@Override // com.tencent.mm.plugin.appbrand.jsapi.j
public void a() {
String strO;
if (TextUtils.isEmpty(this.f80734a)) {
Looper looper = this.f80132g;
if (looper != null && looper != Looper.myLooper()) {
te teVar = this.f80133h.f78926p;
int i16 = this.f80130e;
synchronized (teVar) {
if (!teVar.f80749b) {
teVar.f80750c.put(i16, System.currentTimeMillis());
}
}
new Handler(this.f80132g).post(new p(this, this));
return;
}
boolean zC = this.f80133h.c(this.f80128c.k(), this.f80131f);
if (!zC) {
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invoke handler.proceed() log[%s] api[%s], callbackId[%d], component not running", this.f80133h.C(), this.f80128c, Integer.valueOf(this.f80130e));
}
if (zC) {
try {
JSONObject jSONObjectD = m.D(this.f80133h, this.f80127b);
try {
JSONObject jSONObjectD2 = !TextUtils.isEmpty(this.f80129d) ? m.D(this.f80133h, this.f80129d.trim()) : null;
if (jSONObjectD != null && jSONObjectD.optBoolean("noCallback", false)) {
this.f80133h.f78931u.put(Integer.valueOf(this.f80130e), Boolean.TRUE);
}
strO = jSONObjectD == null ? this.f80128c.o("fail:invalid data") : this.f80133h.R(this.f80128c, jSONObjectD, jSONObjectD2, this.f80130e, this.f80131f);
m mVar = this.f80133h;
j0 j0Var = this.f80128c;
String str = this.f80127b;
String str2 = this.f80129d;
int i17 = this.f80130e;
k kVar = mVar.f78921h;
if (kVar != null) {
kVar.a(j0Var, str, str2, i17, strO);
}
} catch (OutOfMemoryError e16) {
Object[] objArr = new Object[2];
objArr[0] = this.f80128c.k();
String str3 = this.f80129d;
objArr[1] = Integer.valueOf((str3 != null ? str3 : "").length());
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invokeImpl() parsePrivateDataStr, api[%s], privateData.length[%d]", objArr);
throw e16;
}
} catch (OutOfMemoryError e17) {
Object[] objArr2 = new Object[2];
objArr2[0] = this.f80128c.k();
String str4 = this.f80127b;
objArr2[1] = Integer.valueOf((str4 != null ? str4 : "").length());
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invokeImpl() parseDataStr oom, api[%s], data_length[%d]", objArr2);
throw e17;
}
} else {
strO = this.f80128c.o("fail:interrupted");
}
if (TextUtils.isEmpty(strO)) {
return;
}
this.f80734a = strO;
if (this.f80128c instanceof z0) {
return;
}
m mVar2 = this.f80133h;
com.tencent.mm.plugin.appbrand.jsruntime.c0 jsRuntime = this.f80131f;
if (jsRuntime == null) {
jsRuntime = mVar2.getJsRuntime();
}
mVar2.E(this.f80130e, strO, jsRuntime);
}
}
@Override // com.tencent.mm.plugin.appbrand.jsapi.j
public void b(String str) {
// ...
}
}
到这里就完成了Java层的统一调用派发，后续将进入getLocation在Java层的具体业务逻辑。
Java层：getLocation具体逻辑
函数com.tencent.mm.plugin.appbrand.jsapi.m.R逻辑如下：
com.tencent.mm.plugin.appbrand.jsapi.m#R / Java
public String R(j0 j0Var, JSONObject jSONObject, JSONObject jSONObject2, int i16, com.tencent.mm.plugin.appbrand.jsruntime.c0 c0Var) {
try {
if (j0Var instanceof z0) {
return j0Var.m() ? ((z0) j0Var).A(this, jSONObject, c0Var) : ((z0) j0Var).z(this, jSONObject);
}
if (!(j0Var instanceof f)) {
return "";
}
String strU = U(j0Var, jSONObject);
if (strU == null) {
if (j0Var instanceof g) {
((g) j0Var).j(new qe(c0Var, this, jSONObject, jSONObject2, i16));
} else if (j0Var.m()) {
((f) j0Var).B(this, jSONObject, i16, c0Var);
} else {
((f) j0Var).A(this, jSONObject, i16);
}
}
return strU;
} catch (ClassCastException e16) {
com.tencent.mm.sdk.platformtools.m2.n("MicroMsg.AppBrandComponentImpl", e16, e16.getMessage(), new Object[0]);
return j0Var.o("fail:internal error invalid js component");
} catch (Throwable th6) {
com.tencent.mm.sdk.platformtools.m2.e("MicroMsg.AppBrandComponentImpl", "invokeTheJsApi with name[%s], get exception %s", j0Var, th6);
throw th6;
}
}
传入函数R的第一个参数j0Var就是前面提到的handler，完整的数据流为：
在Q函数中j0 r56 = t(r16);，r16是字符串apiName，在查询到对应的handler后保存到变量r56；
变量r56作为第一个参数传入函数O（形参也叫j0Var）；
作为第三个参数构造q类，被保存至q类的this.f80128c；
在函数q.a中经过this.f80133h.R(this.f80128c, jSONObjectD, jSONObjectD2, this.f80130e, this.f80131f);作为第一个参数传入函数m.R。
这一过程完成了从字符串apiName到对应Java类的解析。同样地，jSONObjectD和jSONObjectD2分别对应解析后的JSON参数args和privateArgs；this.f80130e则对应callbackId。
我们可以Hook这个R函数，观察getLocation最终调用的处理函数：
Plain Text
[com.tencent.mm:appbrand0] com.tencent.mm.plugin.appbrand.jsapi.m#R called with args: (com.tencent.mm.plugin.appbrand.jsapi.lbs.f0@7c72cb4, {"type":"wgs84"}, {}, 69, <com.tencent.mm.plugin.appbrand.jsruntime.o0 object>)
Stack: java.lang.Exception
at com.tencent.mm.plugin.appbrand.jsapi.m.R(Native Method)
at com.tencent.mm.plugin.appbrand.service.c0.R(Unknown Source:141)
at com.tencent.mm.plugin.appbrand.jsapi.q.a(Unknown Source:189)
at com.tencent.mm.plugin.appbrand.jsapi.p.run(Unknown Source:21)
at android.os.Handler.handleCallback(Handler.java:995)
at android.os.Handler.dispatchMessage(Handler.java:105)
at android.os.Looper.loopOnce(Looper.java:288)
at android.os.Looper.loop(Looper.java:393)
at android.os.HandlerThread.run(HandlerThread.java:85)
从日志可以看到对应的handler是com.tencent.mm.plugin.appbrand.jsapi.lbs.f0。这个类的继承关系如下：
Plain Text
com.tencent.mm.plugin.appbrand.jsapi.lbs.f0 (添加了一些增强功能)
^
com.tencent.mm.plugin.appbrand.jsapi.lbs.e0 (JsApiGetLocation，getLocation实现)
^
com.tencent.mm.plugin.appbrand.jsapi.lbs.b (AppBrand.BaseLbsAsyncJsApi)
^
com.tencent.mm.plugin.appbrand.jsapi.f
^
com.tencent.mm.plugin.appbrand.jsapi.j0 (AppBrandJsApi)
^
com.tencent.mm.plugin.appbrand.jsapi.h (AppBrand.BaseJsApi)
函数R中会判断handler的类型（如同步/异步等），在本例将会进入调用A函数的逻辑，该函数定义在异步LBS（Location-Based Service）API基类com.tencent.mm.plugin.appbrand.jsapi.lbs.b中：
com.tencent.mm.plugin.appbrand.jsapi.lbs.b / Java
package com.tencent.mm.plugin.appbrand.jsapi.lbs;
// import ...
/* loaded from: classes6.dex */
public abstract class b extends com.tencent.mm.plugin.appbrand.jsapi.f {
/* renamed from: g, reason: collision with root package name */
public boolean f78784g;
@Override // com.tencent.mm.plugin.appbrand.jsapi.f
public void A(com.tencent.mm.plugin.appbrand.jsapi.l lVar, JSONObject jSONObject, int i16) {
boolean zC;
if (C(lVar)) {
zC = true;
} else {
if (this.f78784g) {
lVar.a(i16, o("fail:system permission denied"));
} else {
Activity activity = lVar.getContext() instanceof Activity ? (Activity) lVar.getContext() : null;
if (activity == null) {
m2.e("MicroMsg.AppBrand.BaseLbsAsyncJsApi", "operateRecorder, pageContext is null", null);
lVar.a(i16, o("fail:internal error invalid android context"));
} else {
zC = te.g.a(activity).c(lVar, "android.permission.ACCESS_FINE_LOCATION", new a(this, lVar, jSONObject, i16));
}
}
zC = false;
}
if (!zC) {
m2.e("MicroMsg.AppBrand.BaseLbsAsyncJsApi", "%s requestPermission fail", k());
} else if (jSONObject != null) {
D(lVar, jSONObject, i16);
} else {
m2.e("MicroMsg.AppBrand.BaseLbsAsyncJsApi", "%s invalid data", k());
lVar.a(i16, o("fail:invalid data"));
}
}
public final boolean C(com.tencent.mm.plugin.appbrand.jsapi.l lVar) {
Context context = lVar.getContext();
if (context == null) {
context = a3.f184769a;
}
return te.t.b(context, lVar, "android.permission.ACCESS_FINE_LOCATION");
}
public abstract void D(com.tencent.mm.plugin.appbrand.jsapi.l lVar, JSONObject jSONObject, int i16);
}
该函数检查微信App是否拥有android.permission.ACCESS_FINE_LOCATION权限，随后进入主要业务逻辑函数D。该函数在类com.tencent.mm.plugin.appbrand.jsapi.lbs.e0中实现，这是getLocation主要逻辑的实现类：
com.tencent.mm.plugin.appbrand.jsapi.lbs.e0 / Java
package com.tencent.mm.plugin.appbrand.jsapi.lbs;
// import ...
/* loaded from: classes6.dex */
public class e0 extends b {
public static final int CTRL_INDEX = 37;
public static final String NAME = "getLocation";
@Override // com.tencent.mm.plugin.appbrand.jsapi.lbs.b
public void D(com.tencent.mm.plugin.appbrand.jsapi.l lVar, JSONObject jSONObject, int i16) {
String strOptString = jSONObject.optString("type", "wgs84");
boolean z16 = y8.f185428a;
if (strOptString == null) {
strOptString = "";
}
String strTrim = strOptString.trim();
if (y8.K0(strTrim)) {
strTrim = "wgs84";
}
boolean zOptBoolean = jSONObject.optBoolean("altitude", false);
m2.j("MicroMsg.JsApiGetLocation", "getLocation data:%s", jSONObject);
if (!"wgs84".equals(strTrim) && !"gcj02".equals(strTrim)) {
m2.e("MicroMsg.JsApiGetLocation", "doGeoLocation fail, unsupported type = %s", strTrim);
HashMap map = new HashMap(1);
map.put("errCode", -1);
lVar.a(i16, p("fail:invalid data", map));
return;
}
if (!C(lVar)) {
HashMap map2 = new HashMap(1);
map2.put("errCode", -2);
lVar.a(i16, p("fail:system permission denied", map2));
return;
}
F(lVar);
Bundle bundleH = H(lVar, jSONObject);
pd1.c cVar = (pd1.c) lVar.B(pd1.c.class);
if (cVar != null) {
((re.e) cVar).b(strTrim, G(lVar, new d0(this, lVar, strTrim, zOptBoolean, i16)), bundleH);
}
}
public void E(com.tencent.mm.plugin.appbrand.jsapi.l lVar, int i16, String str, pd1.a aVar) {
}
public void F(com.tencent.mm.plugin.appbrand.jsapi.l lVar) {
}
public pd1.b G(com.tencent.mm.plugin.appbrand.jsapi.l lVar, pd1.b bVar) {
return bVar;
}
public Bundle H(com.tencent.mm.plugin.appbrand.jsapi.l lVar, JSONObject jSONObject) {
Bundle bundle = new Bundle();
boolean zOptBoolean = jSONObject.optBoolean("isHighAccuracy", false);
int iOptInt = jSONObject.optInt("highAccuracyExpireTime", 3000);
bundle.putBoolean("isHighAccuracy", zOptBoolean);
bundle.putInt("highAccuracyExpireTime", iOptInt);
bundle.putBoolean("useCache", lVar.getAppState() != f21.b.FOREGROUND);
return bundle;
}
}
相关参数最终传入定位服务组件re.e（DefaultTencentLocationManager）。re.e.b函数反编译失败，从Simple代码中能看出函数做了一些缓存优化的逻辑，最终调用了requestSingleFreshLocation：
re.e#b / Java
public void b(String r202, pd1.b r212, Bundle r222) {
boolean r56 = "wgs84".equals(r202);
boolean r66 = r222.getBoolean("enableIndoor");
boolean r76 = r222.getBoolean("isHighAccuracy", false);
int r96 = r222.getInt("highAccuracyExpireTime", 3000);
boolean r102 = r222.getBoolean("useCache", false);
if (this.f367345g == null) goto L7;
int r17 = r96;
if ((System.currentTimeMillis() - this.f367346h) >= 5000) goto L8;
boolean r86 = true;
L10:
if (this.f367345g == null) goto L16;
if (r102 == true) goto L13;
if (r86 == false) goto L16;
L13:
m2.j("MicroMsg.DefaultTencentLocationManager", "useCache isHighAccuracy:false enableIndoor:%b highAccuracyExpireTime:%d", new Object[]{Boolean.valueOf(r66), Integer.valueOf(r17)});
r212.b(this.f367347i, this.f367348m, e(this.f367345g, r56));
return;
L16:
if (this.f367343e == null) goto L20;
String r18 = "MicroMsg.DefaultTencentLocationManager";
if ((System.currentTimeMillis() - this.f367344f) >= 5000) goto L21;
boolean r87 = true;
L23:
if (this.f367343e == null) goto L29;
if (r76 == true) goto L29;
if (r102 == true) goto L27;
if (r87 == false) goto L29;
L27:
m2.j(r18, "useCache isHighAccuracy:false enableIndoor:%b", new Object[]{Boolean.valueOf(r66)});
r212.b(this.f367347i, this.f367348m, e(this.f367343e, r56));
return;
L29:
String r88 = r18;
if ("wgs84".equals(r202) == false) goto L34;
List r16 = this.f367349n;
((CopyOnWriteArrayList) r16).add(r212);
if (((CopyOnWriteArrayList) r16).size() <= 1) goto L37;
return;
L37:
k0 r19 = l0.a();
Runnable r26 = this.f367355t;
r19.removeCallbacks(r26);
l0.a().b(r26, 20000);
TencentLocationRequest r110 = TencentLocationRequest.create();
r110.setInterval(2000);
r110.setIndoorLocationMode(r66);
r110.setSmallAppKey(r222.getString("smallAppKey"));
int r46 = r17;
r110.setmExpirationTime(r46);
r110.setAndroidId(w0.c());
r110.setOpenId(r222.getString("openId"));
r110.getExtras().putBoolean("KEY_IS_HIGH_ACCURACY", r76);
int r111 = d().requestSingleFreshLocation(r110, this.f367353r, Looper.getMainLooper(), r76);
r222.getString("smallAppKey");
r222.getString("openId");
m2.j(r88, "enableIndoor:%b isHighAccuracy:%b highAccuracyExpireTime:%d useCache:%b requestCode %d", new Object[]{Boolean.valueOf(r66), Boolean.valueOf(r76), Integer.valueOf(r46), Boolean.valueOf(r102), Integer.valueOf(r111)});
return;
L34:
List r112 = this.f367350o;
((CopyOnWriteArrayList) r112).add(r212);
if (((CopyOnWriteArrayList) r112).size() <= 1) goto L37;
return;
L21:
r87 = false;
goto L23
L20:
r18 = "MicroMsg.DefaultTencentLocationManager";
L8:
r86 = false;
goto L10
L7:
r17 = r96;
goto L8
}
requestSingleFreshLocation函数定义于类com.tencent.map.geolocation.sapp.TencentLocationManager：
com.tencent.map.geolocation.sapp.TencentLocationManager / Java
package com.tencent.map.geolocation.sapp;
// import ...
/* loaded from: classes12.dex */
public final class TencentLocationManager {
public static final int COORDINATE_TYPE_GCJ02 = 1;
public static final int COORDINATE_TYPE_WGS84 = 0;
private static final boolean DEBUG = false;
private static final String TAG = "TencentLocationManager";
public static final String TYPE_OAID = "oaId";
public static final String TYPE_QIMEI = "qImei";
private static Context mContext;
private static Pair<String, String> mPair;
private static Class mProxyClass;
private static Object mProxyObj;
private static TencentLocationManager sInstance;
private int mInitStatus;
private final byte[] mLock = new byte[0];
private TencentLocationManager(Context context, Pair<String, String> pair) {
Pair<String, String> pair2;
this.mInitStatus = 0;
if (TencentLocationManagerOptions.isLoadLibraryEnabled()) {
try {
CsoLoader.e("tencentlocsapp");
} catch (Throwable th6) {
i.a("libtencentloc", th6);
this.mInitStatus = 3;
return;
}
}
mContext = context;
q.a(context, pair);
e.a(context).c();
for (int i16 = 0; i16 < 3; i16++) {
if ((pair != null || (pair2 = mPair) == null) ? a(context, pair, i16) : a(context, pair2, i16)) {
DataBusNativeInterface.init(context);
return;
}
}
}
private boolean a(Context context, Pair<String, String> pair, int i16) {
if (i16 > 0) {
q.a(q.c(context));
q.a(q.h(context));
q.a();
f.a(context).c();
}
try {
DexClassLoader dexClassLoaderA = f.a(context).a();
if (dexClassLoaderA == null) {
i.a("class loader is null," + i16);
e.b().a("LMI", "41");
this.mInitStatus = 4;
return false;
}
Class<?> clsLoadClass = dexClassLoaderA.loadClass("com.tencent.map.geolocation.sapp.proxy.TencentLocationManagerProxy");
mProxyClass = clsLoadClass;
if (pair != null) {
mProxyObj = clsLoadClass.getConstructor(Context.class, Pair.class).newInstance(context, pair);
} else {
mProxyObj = clsLoadClass.getConstructor(Context.class).newInstance(context);
}
if (mProxyObj != null) {
e.b().a("LMI", "0," + i16);
return true;
}
this.mInitStatus = 4;
i.a("Mgr init failed," + i16);
e.b().a("LMI", "42," + i16);
return false;
} catch (Throwable th6) {
this.mInitStatus = 5;
i.a("initLocManager", th6);
e.b().a("LMI", MJMaasVersion.BUILD_NUMBER + th6.toString());
return false;
}
}
public static synchronized TencentLocationManager getInstance(Context context) {
if (sInstance == null) {
if (context == null) {
throw new NullPointerException("context is null");
}
if (context.getApplicationContext() == null) {
throw new NullPointerException("application context is null");
}
System.currentTimeMillis();
sInstance = new TencentLocationManager(context.getApplicationContext(), null);
}
return sInstance;
}
// ...
public int requestSingleFreshLocation(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener, Looper looper, boolean z16) {
int iIntValue;
if (tencentLocationListener == null) {
throw new NullPointerException("listener is null");
}
if (looper == null) {
throw new NullPointerException("looper is null");
}
int i16 = this.mInitStatus;
if (i16 > 0) {
return i16;
}
synchronized (this.mLock) {
try {
iIntValue = ((Integer) mProxyClass.getDeclaredMethod("requestSingleFreshLocation", TencentLocationRequest.class, TencentLocationListener.class, Looper.class, Boolean.TYPE).invoke(mProxyObj, tencentLocationRequest, tencentLocationListener, looper, Boolean.valueOf(z16))).intValue();
} catch (Throwable th6) {
i.a("reqSigLoc error. ", th6);
return 5;
}
}
return iIntValue;
}
// ...
public int requestSingleFreshLocation(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener, Looper looper) {
return requestSingleFreshLocation(tencentLocationRequest, tencentLocationListener, looper, false);
}
}
可以看到这个类采用了动态加载+代理模式，真正的逻辑在类TencentLocationManagerProxy中。这个.dex被存在本地，可以用如下方法找到，首先进入ADB Shell，在微信包路径下搜索：
Bash
su
cd /data/data/com.tencent.mm
find . -name "*.dex"
Plain Text
>>> ./files/TencentLocation_sapp/comp/1.dex然后复制到本地避免权限问题：
Bash
cp /data/data/com.tencent.mm/files/TencentLocation_sapp/comp/1.dex /sdcard/Download/exit退出ADB Shell，abd pull并反编译1.dex：
Bash
adb pull /sdcard/Download/1.dex
jadx-gui 1.dex &
就能看到TencentLocationManagerProxy类的源码了。
com.tencent.map.geolocation.sapp.proxy.TencentLocationManagerProxy / Java
package com.tencent.map.geolocation.sapp.proxy;
import android.content.Context;
import android.os.Looper;
import android.text.TextUtils;
import android.util.Pair;
import c.t.m.sapp.g.ce;
import c.t.m.sapp.g.dm;
import c.t.m.sapp.g.dn;
import c.t.m.sapp.g.ds;
import c.t.m.sapp.g.dx;
import c.t.m.sapp.g.ea;
import c.t.m.sapp.g.im;
import com.tencent.map.geolocation.sapp.TencentLocation;
import com.tencent.map.geolocation.sapp.TencentLocationListener;
import com.tencent.map.geolocation.sapp.TencentLocationRequest;
/* compiled from: TLSAPP */
/* loaded from: 1.dex */
public class TencentLocationManagerProxy {
public static final int COORDINATE_TYPE_GCJ02 = 1;
public static final int COORDINATE_TYPE_WGS84 = 0;
private static final boolean DEBUG = false;
private static final String TYPE_OAID = "oaId";
private static final String TYPE_QIMEI = "qImei";
private final dm appContext;
private final ea locationManager;
private final byte[] mLock;
public TencentLocationManagerProxy(Context context, Pair<String, String> pair) {
this.mLock = new byte[0];
im.a(context);
this.appContext = dm.a(context);
this.locationManager = new ea(this.appContext);
ce.b();
uploadLimeiInfo(context, pair);
}
public TencentLocationManagerProxy(Context context) {
this.mLock = new byte[0];
im.a(context);
this.appContext = dm.a(context);
this.locationManager = new ea(this.appContext);
ce.b();
}
private void uploadLimeiInfo(Context context, Pair<String, String> pair) {
if (pair != null) {
String str = (String) pair.first;
String strReplaceAll = (String) pair.second;
if (!TextUtils.isEmpty(str) && !TextUtils.isEmpty(strReplaceAll)) {
if (str.equals(TYPE_QIMEI) || str.equals(TYPE_OAID) || str.length() <= 32) {
if (strReplaceAll.contains("|")) {
strReplaceAll = strReplaceAll.replaceAll("\\|", "");
}
if ("".equals(ds.b())) {
im.b("LocationSDK", "location_device_id_type", str);
im.b("LocationSDK", "location_device_id", strReplaceAll);
}
dx.d = strReplaceAll;
}
}
}
}
public void setCoordinateType(int i) {
if (i == 1 || i == 0) {
synchronized (this.mLock) {
this.locationManager.a(i);
}
return;
}
throw new IllegalArgumentException("unknown coordinate type: ".concat(String.valueOf(i)));
}
public int getCoordinateType() {
return this.locationManager.f();
}
public int requestLocationUpdates(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener) {
return requestLocationUpdates(tencentLocationRequest, tencentLocationListener, Looper.myLooper());
}
public int requestLocationUpdates(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener, Looper looper) {
int iA;
if (tencentLocationRequest == null) {
throw new NullPointerException("request is null");
}
if (tencentLocationListener == null) {
throw new NullPointerException("listener is null");
}
if (looper == null) {
throw new NullPointerException("looper is null");
}
synchronized (this.mLock) {
iA = this.locationManager.a(tencentLocationRequest, tencentLocationListener, looper);
}
return iA;
}
public int requestSingleFreshLocation(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener, Looper looper, boolean z) {
int iA;
if (tencentLocationListener == null) {
throw new NullPointerException("listener is null");
}
if (looper == null) {
throw new NullPointerException("looper is null");
}
synchronized (this.mLock) {
iA = this.locationManager.a(tencentLocationRequest, tencentLocationListener, looper, z);
}
return iA;
}
public int requestSingleFreshLocation(TencentLocationRequest tencentLocationRequest, TencentLocationListener tencentLocationListener, Looper looper) {
return requestSingleFreshLocation(tencentLocationRequest, tencentLocationListener, looper, false);
}
// ...
}
再向下深入就进入腾讯定位服务SDK的源码了。
